Industrial Valves - Tekne Oilfield UAE
Premium Flow Control Solutions for Oil, Gas, Petrochemical & Industrial Applications
At Tekne Oilfield, we offer an extensive range of high-performance industrial valves designed to meet the demanding requirements of the oil and gas industrial sectors throughout the UAE and the Middle East.
Our portfolio of products includes an extensive selection of Ball Valves, Gate Valves, Globe Valves, Check Valves, Butterfly Valves, Plug Valves, as well as special solutions designed for high-pressure, high-temperature, and highly corrosive environments.
Crescent Valves
Crescent Valves is an internationally recognised producer of high performance industrial valves with a specialisation in floating and trunnion mounted ball valves, gate, globe, check, as well as butterfly valves. They are renowned for their sturdy engineering and conformity to internationally recognised standards. Crescent Valves offers efficient flow control solutions suitable for oil and gas and industrial applications.
Boneforge Valves
Boneforge Valves is a leading supplier of innovative valve solutions that are designed for the most demanding industries. Boneforge offers a full assortment of gate valves, ball valves, globe valves, check valves, and other specialty valves. They are built to withstand the most extreme operating conditions, comply with internationally recognised quality standards, and are an ideal option for pipelines, process facilities, and offshore applications.
FBV Inc. Valves
FBV Inc. Valves is a specialist in top quality process and industrial valves that are used in the oil and gas industries. FBV valves are renowned for their high-quality engineering and versatility. They are designed to provide reliability in high pressure and corrosive environments. FBV valves conform to API, ASME, and ISO standards, providing reliable, safe control for flow processes.

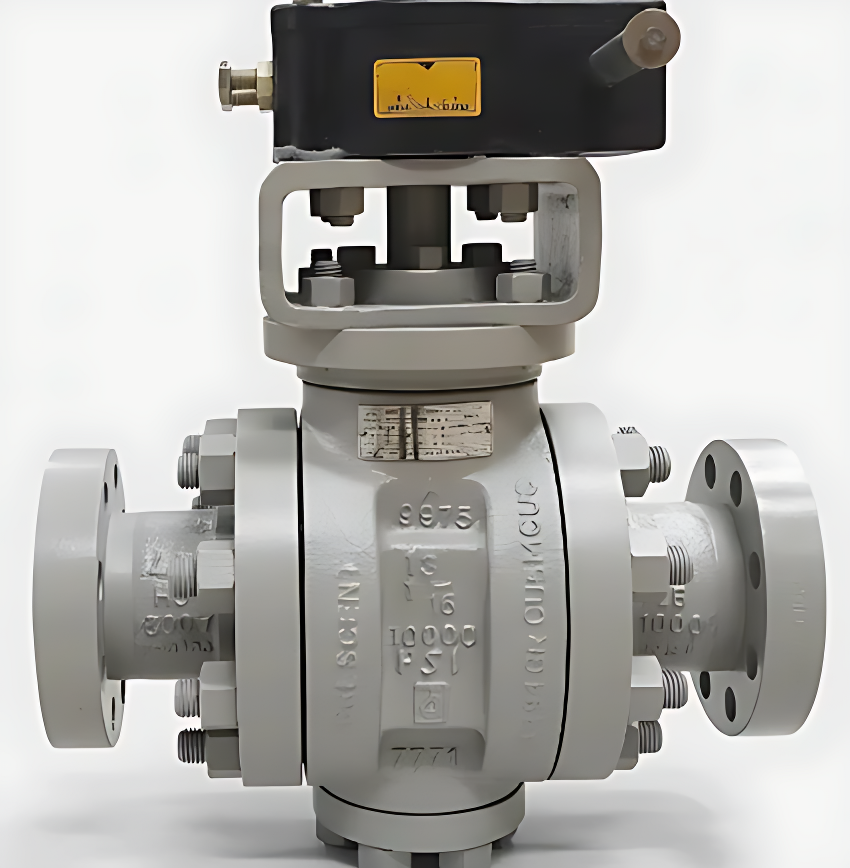

Trunnion-Mounted Ball Valves
Crescent Valves manufactures a comprehensive assortment of Trunnion Mounted Ball Valves that range between 2” to 40″ (DN 50 to DN 1000) and pressure ratings starting at the Class 150# up to 2500# made to offer high-quality flow control and secure shut-offs in a broad range of applications.
Crescent Trunnion Mounted Ball Valves come in reduced-bore as well as full-bore designs that allow for different flow and processing circumstances. The trunnion-mounted design reduces operating torque, increasing durability and providing an encapsulated seal in high-pressure and high-temperature environments.
Crescent Trunnion-mounted Ball Valves are designed to offer the highest performance, endurance, and safety when working in harsh industrial environments.
Specification
- Size: 2″ to 40″ (DN 50 to DN 1000)
- Rating: ASME CL 150 to 2500
- Design: ASME B 16.34 / ISO 17292 / API 608 / API 6D
- Face to Face: ASME B 16.10
- End Connection: ASME B 16.5 / ASME B 16.25
- Testing: API 598 / API 6D / ISO 5208 / BS EN 12266-1
- Fugitive Emission: ISO 15848 Part 1 & 2 / MESC SPE 77/312
- Fire Safe: API 607 / API 6FA
- Special: NACE MR 0175
- Materials: Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminium Bronze, Hastelloy, Inconel, Titanium Alloy & Carbon Steel with an Internal Corrosion Resistant Alloy (CRA) Overlay

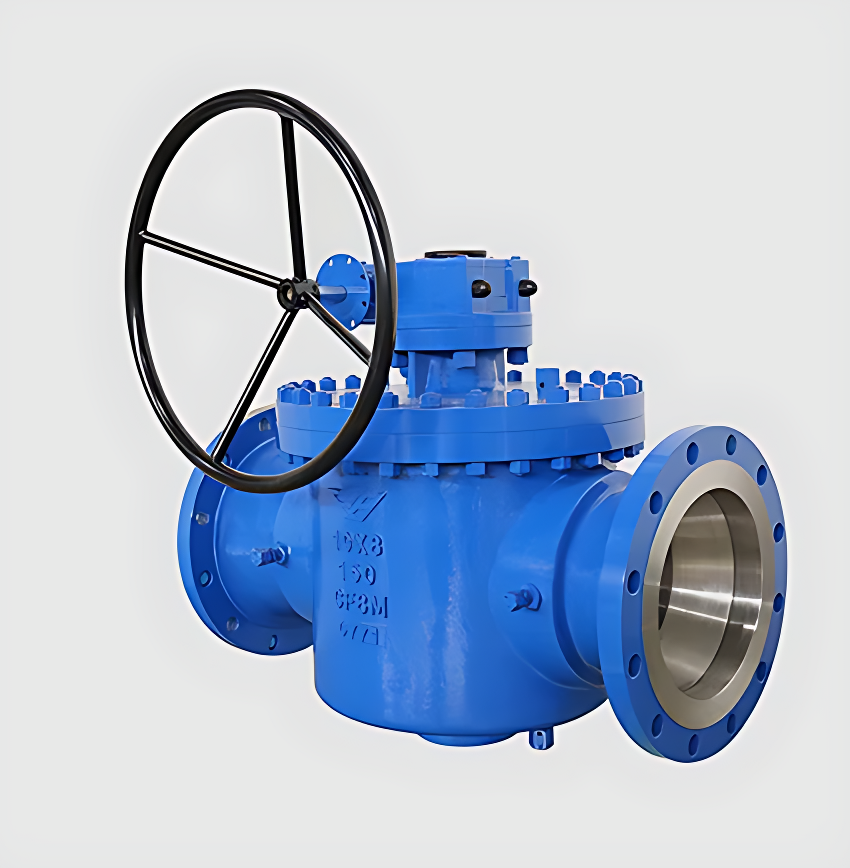

Cavity Free Valve
FBV Cavity Free Valve is available in top-entry 1PC body designs in carbon steel, stainless steel, and duplex stainless steel. Other special materials are also offered. FBV Cavity Free Valve can be used in many applications where the media does not accumulate inside the valve. They are made according to API Standards 6D and 608
Consulting:
832-203-5459
PRODUCT RANGE
Sizes NPS2 to NPS20
Classes 150 to 600
MATERIALS
Available in Casting (A216 WCB, A350 LCB, A351 CF8, CF8M, CF3, CF3M, A995 4A, A995 5A, A995 6A),F304,F316 ,F51,F53,F55, Alloy 20, Monel, Inconel, Hastelloy
Design Features
Full Bore or Reduced Bore
The RF, BW, or RTJ
Bolted Bonnet
Seat rings that are renewable
Design Standard
Design and manufacture in accordance with API 608, API6D, ASMEB16.34
ASME B16.10 FBV “STD”
API 6D: Test and inspection according to API 598
Available in NACE MR-0175 and NACE MR-0103, as well as ISO 15848

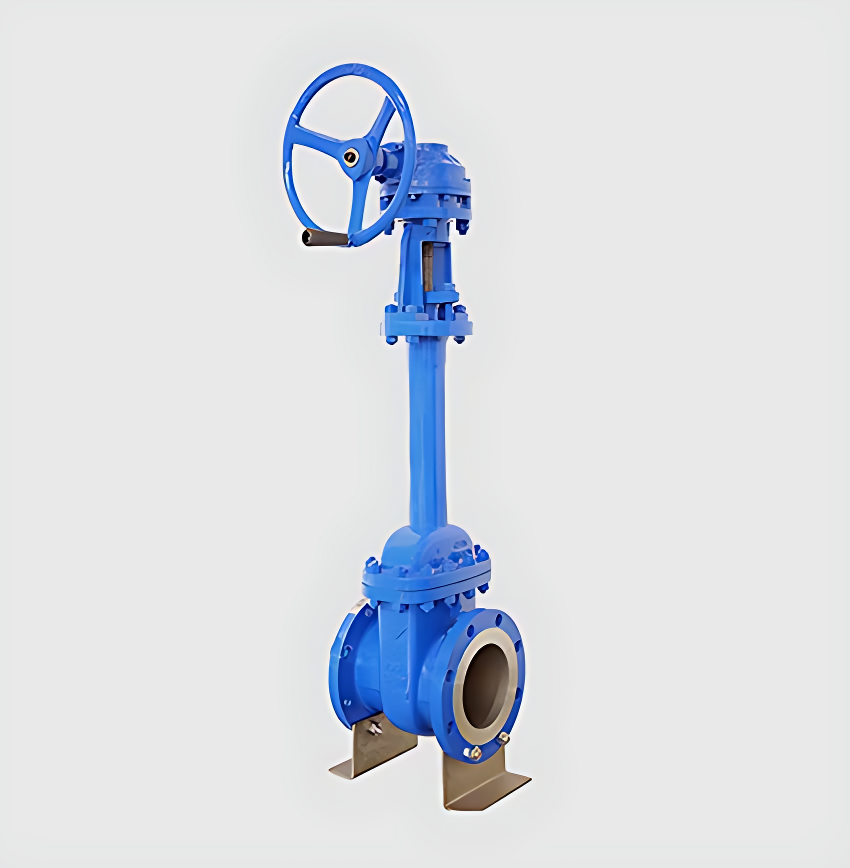

Cryogenic Valve
The design structure is chosen based on temperature and working conditions. Valve bodies are available in stainless steel, alloys and other materials. Design and manufacturing conform to API 600, API 623, BS 1868, BS 6364, MSS SP 134, API 608, API 6D, and ASME B16.34 standards.
Consulting:
PRODUCT RANGE
Sizes NPS2 to NPS36
Classes 150 and 1500
MATERIALS
Available in A351 CF8, CF8M, CF3, CF3M, F304,F316 ,F51,F53,F55, Alloy 20, Monel, Inconel, Hastelloy
Design Features
Full Bore or Reduced Bore
The RF, BW, or RTJ
Bolted Bonnet
DESIGN STANDARD
Design & manufacturing according to API 600, MSS SP-134 BS1868, API 623, API 608, and ASME B16.34
Face to face according to ASME B16.10
API 598, API6D: Test and inspection
Also available as per ISO 15848, NACE MR-0175, API 624 and API 641

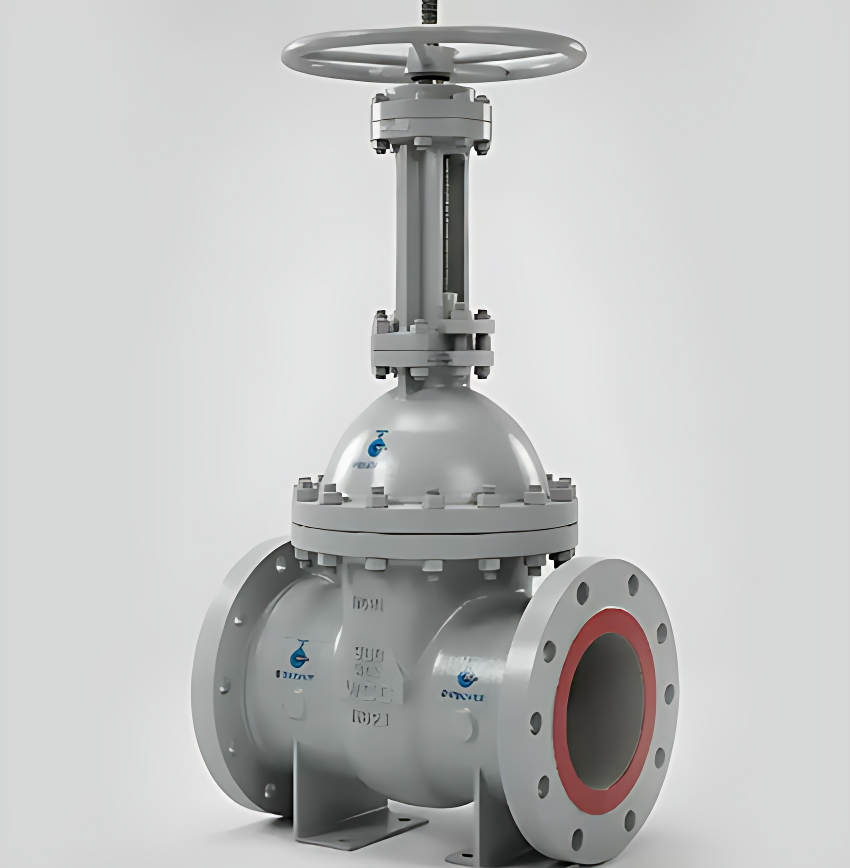

Gate valve
FBV gate valves come with flexible wedge, solid wedge, bolted bonnet, and welded bonnet configurations made with carbon steel, stainless steel, duplex stainless steel, alloys, and other specialty materials. FBV gate valves are built as per API 600 design standards.
PRODUCT RANGE
NPS 2 to NPS 48
Class 150 up to Class 2500
MATERIALS
Available in Casting (A216 WCB, WC6, WC9, A352 LCB, A351 CF8, CF8M, CF3, CF3M, A995 4A, A995 5A, A995 6A), Alloy 20, Monel, Inconel, Hastelloy
DESIGN FEATURES
Full Bore or Reduced Bore
RF, RTJ, or BW
Outside Screw and Yoke (OS&Y), rising stem
Bolted Bonnet or Pressure Seal Bonnet
Wedge- Flexible or Solid
Renewable Seat Rings
DESIGN STANDARD
Design and manufacture per API 600, API 603, ASME B16.34
Face to Face per ASME B16.10
End Connection as per ASME B16.5 (RF and RTJ), ASME B16.25 (BW)
Testing and Inspection per API 598
Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API624

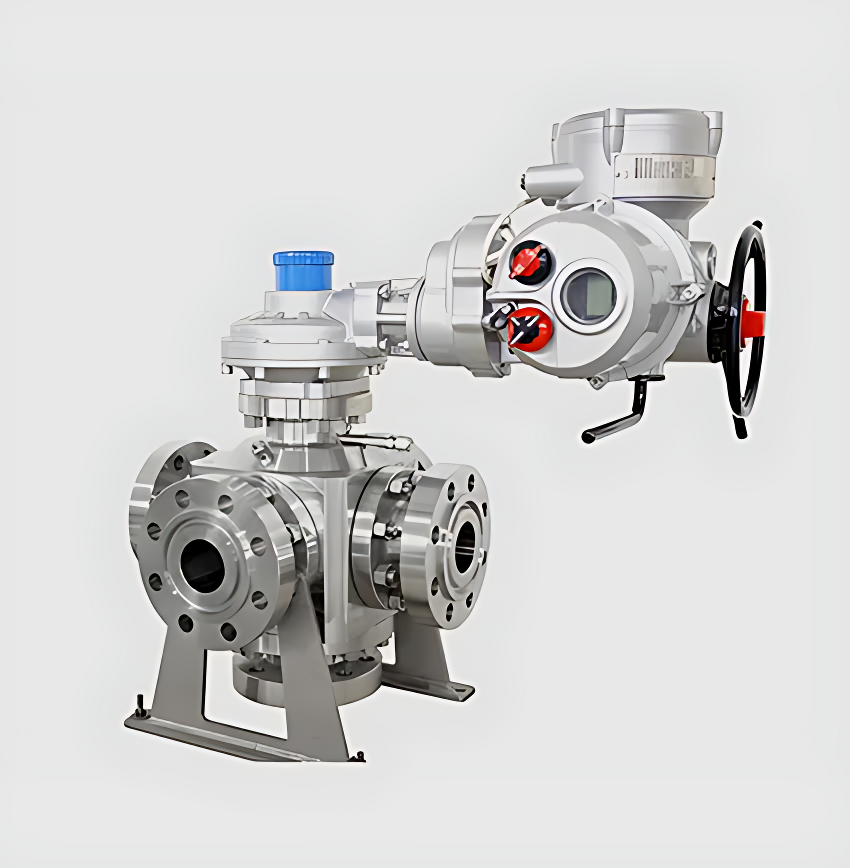

5 Way Valves
FBV 5 Ways Valve is an exclusive multi-channel valve. It can effectively integrate the switching functions of multiple valves to facilitate changing the direction of fluid flow in pipelines and achieve high integration. Designed and manufactured as per API 6D and ASME B16.34 Standard.
Product range
NPS 3 to 24
Class 150 to 2500
Materials
Forged: A182 F316, A182 F304, A182 F51, A182 F53, A182 F55, Alloy 20, Monel, Inconel, Hastelloy
Design features
Full or Reduced Bore
RF, RTJ, or BW
Bolted Bonnet
Renewable seat rings
Metal seat or Soft seat
Design standard
Design & manufacture per API 6D, ASME B16.34
Face to face per FBV ‘STD
End Connection as per ASME B16.5 (RF & RTJ), ASME B16.25 (BW)
Testing & inspection per API 598
Also available per NACE MR 0175, NACE MR 0103, ISO 15848
Twin Ball DBB Valve
The FBV Twin Ball DBB Valve comes in a 3-PC side-entry body and is designed to resemble two balls connected in series. FBV Twin Ball DDB Valve is designed and manufactured in line with API 6D and API 608 Design. They are also tested for fire in accordance with API 6FA and API 607 Standards.
PRODUCT RANGE
- Sizes NPS 3 to NPS 24
- Class 150 to Class 1500
MATERIALS
- Available materials: A105, LF2, F304, F316 ,F51,F53,F55, Alloy 20, Monel, Inconel, Hastelloy
DESIGN FEATURES
- Full or Reduced Bore
- RF, RTJ, or BW
- Bolted Bonnet
- Seat rings are renewable.
- Metal seat or Soft Seat
DESIGN STANDARD
- Production and design in accordance with API 6D, ASME B16.34
- Face-to-face as per FBV STD
- End Connection in accordance with ASME B16.5 (RF and RTJ), ASME B16.25 (BW)
- Inspect and test as per API 598, API 6D.
- Also available under NACE MR-0175, NACE M-0103, and ISO 15848.

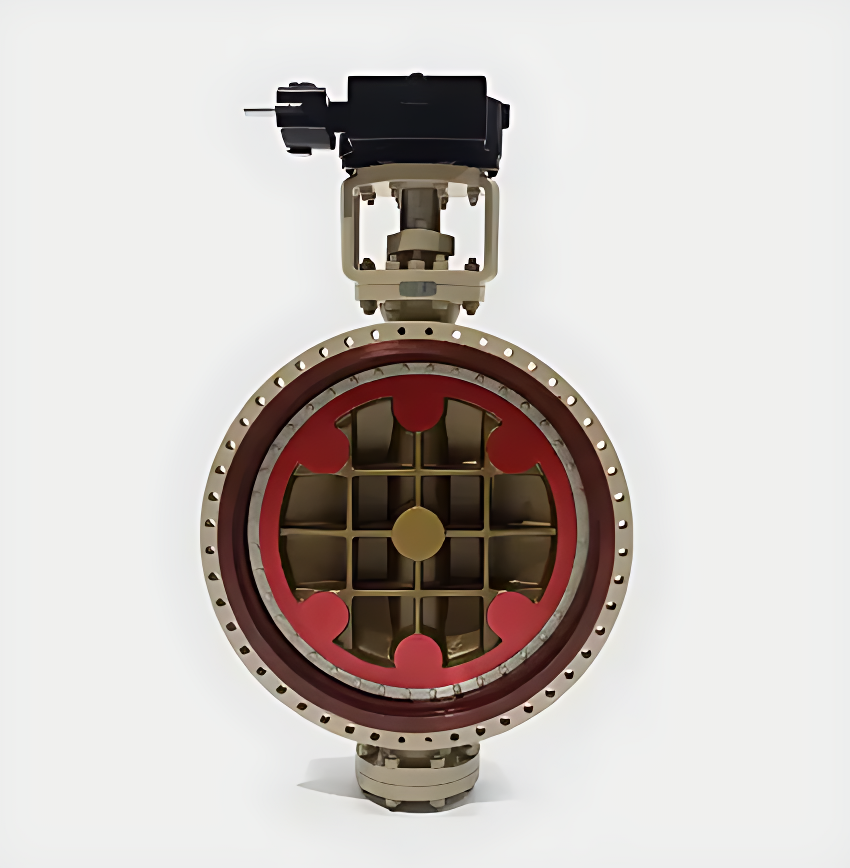

Butterfly Valve
FBV butterfly valves are available in a Triple Offset, Concentric Lining design. They are available in a range of stainless steel, carbon, and duplex stainless steel alloys, as well as other unique materials. Butterfly valves manufactured by FBV are made in accordance with API 609.
PRODUCT RANGE
- Sizes NPS 2 to NPS 76
- Class 150 to Class 2500
MATERIALS
- Available in cast iron A216 WCB, A217 WC6, WC9 A351 CF3, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2, Monel, Inconel, Hastelloy (Casting)
DESIGN FEATURES
- Flange, Wafer, Lug, or BW
- Triple Offset or Concentric Lining Type
DESIGN STANDARD
- Production and design in accordance with API 609 and AWWA C504, ASME B16.34
- Face-to-face in accordance with API 609 and ASME B16.10
- End Connection in accordance with ASME B16.5 (RF and the RTJ), ASME B16.47 (RF, RTJ), MSS SP-44 (NPS 22 Only), ASME B16.25 (BW), AWWA A207
- Testing and inspection in accordance with API 598.

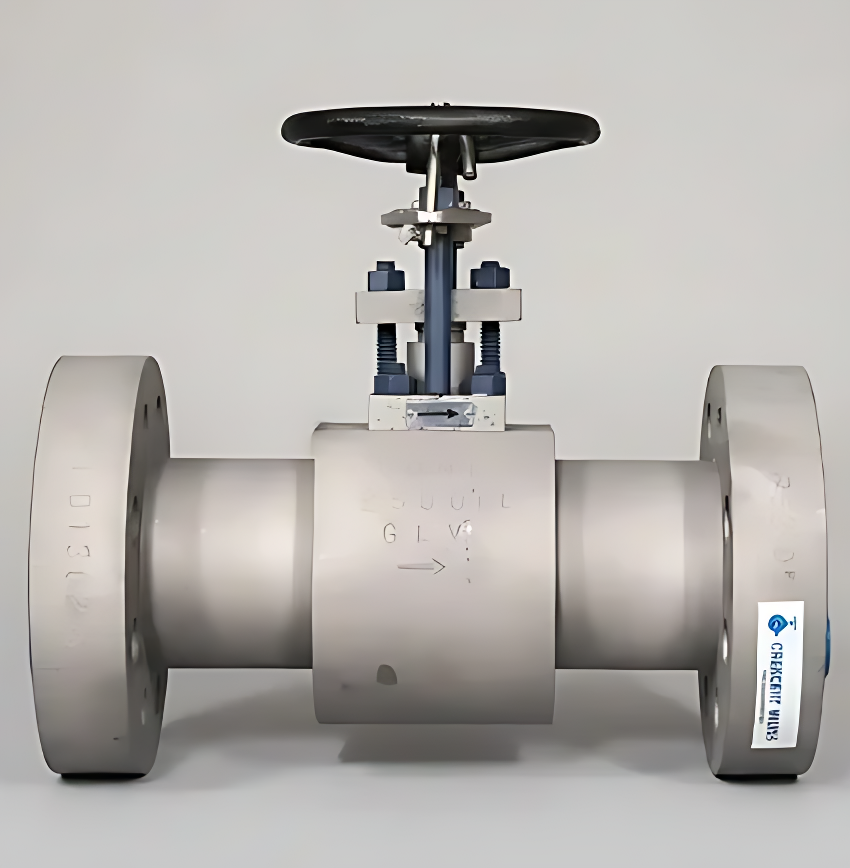

Globe Valve
FBV globe valves can be found in straight patterns as well as bolted bonnets and welded bonnet designs in a broad variety of stainless steel, carbon and duplex stainless steel alloys and different special alloys and other special. FBV globe valves can be constructed in accordance with BS 1873 as well as API 623 design.
- PRODUCT RANGE
Sizes NPS 2 to NPS 24
Class 150 to Class 2500 - MATERIALS
Available in Casting (A216 WCB, WC6, WC9, A350 LCB, A351 CF8, CF8M, CF3, CF3M, A995 4A, A995 5A, A995 6A), Alloy 20, Monel, Inconel, Hastelloy - DESIGN FEATURES
RF, RTJ, or BW
Outside Screw & Yoke (OS&Y) The stem is rising.
Bolted Bonnet or Pressure Seal Bonnet - DESIGN STANDARD
Production and design in accordance with BS 1873, API 623
Face to face according to ASME B16.10
End Connection as per ASME B16.5 (RF and RTJ), ASME B16.25 (BW)
Testing and inspection in accordance with API 598.
Also available under NACE’s MR-0175, NACE’s MR-0103, ISO 15848, API 624

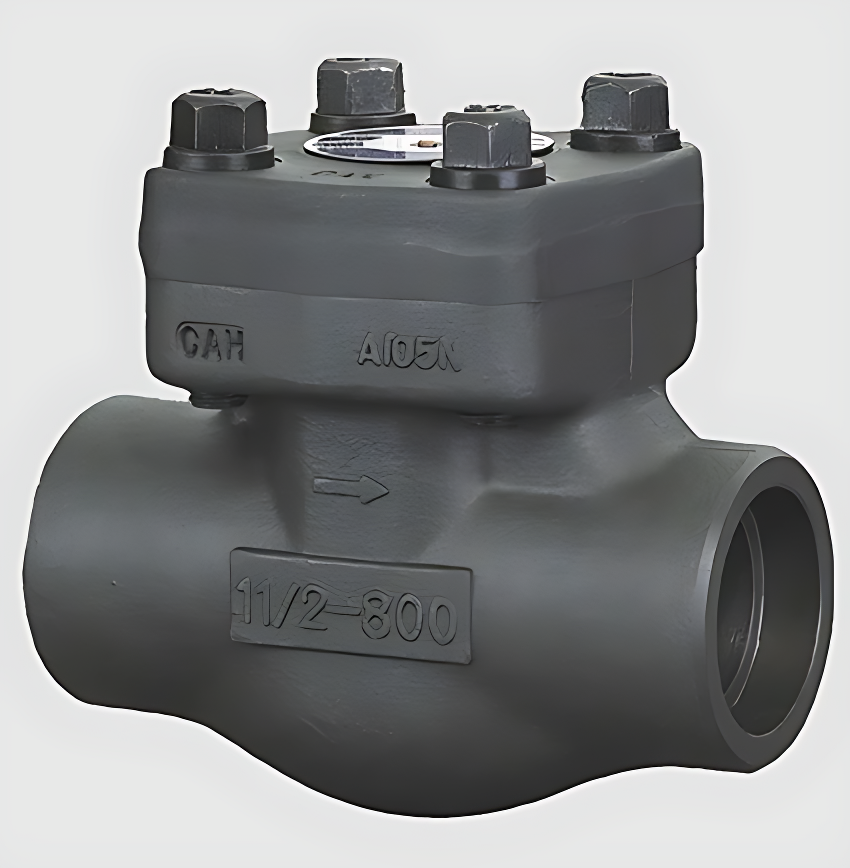

Ball-Check Valve
The FBV Ball Check Valve is an advanced form of lift-check valve. FBV Ball Check Valve is manufactured in accordance with API 6D, API 623 and BS1868 Standards.
- PRODUCT RANGE
Sizes NPS 1/2 – NPS 3
Classes 150 to 2500 - MATERIALS
Available materials: A105, LF2, F304, F316 ,F51,F53,F55, Alloy 20, Monel, Inconel, Hastelloy - Design Features
Full Bore or Reduced Bore
SW, NPT, RF, RTJ,
Integral seat rings
Metal seat - DESIGN STANDARD
Design and manufacture in accordance with API 602, ASME B16.34
Face-to face according to FBV STD
ASME B16.5 (RF & RTJ), ASME 1.20.1 (NPT), ASME 16.11 (SW)
API 598: Test and inspection
Available in NACE MR-0175 and NACE MR-0103 as well as ISO 15848

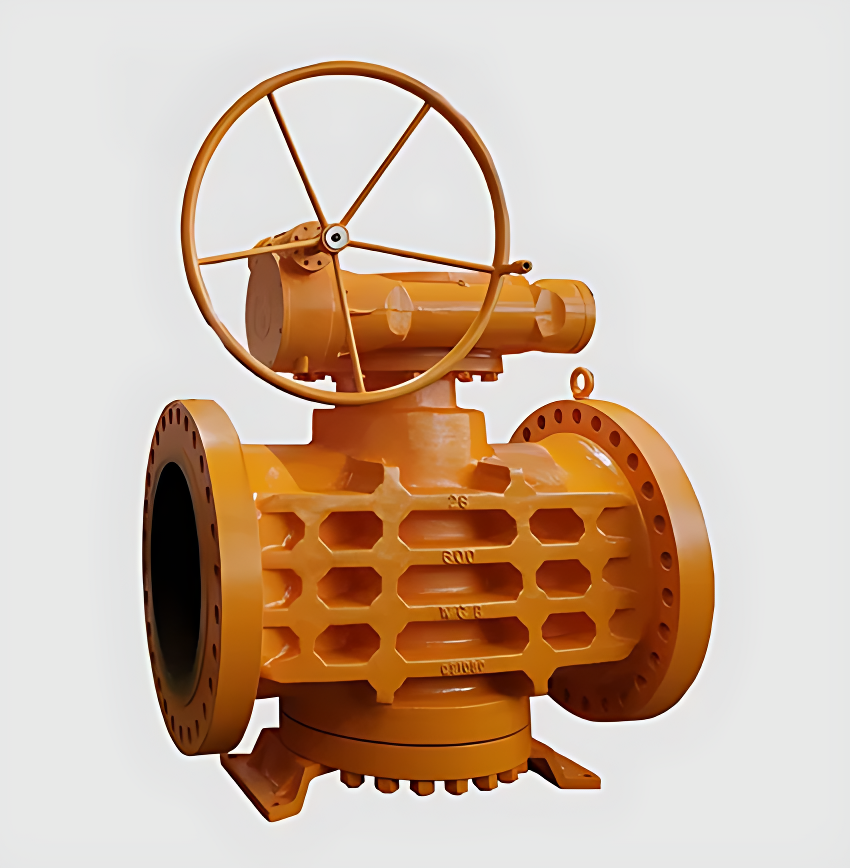

Plug Valve
FBV plug valves come in a variety of materials including carbon steel, stainless steel, duplex stainless, alloy, and other special materials. FBV plugs valves are made according to API 6D and API 599 design.
PRODUCT RANGE
- Sizes NPS 1/2 – NPS 36
- Class 150 to 2500
MATERIALS
Available in Casting for NPS >= 2, Monel Inconel Hastelloy.
DESIGN FEATURES
- Full or Reduced Bore
- RF, BW or RTJ
- Sleeve type or Pressure Seal Balance
DESIGN STANDARD
- Face-to face according to API 6D and ASME B16.10
- End Connection according to ASME B16.5(RF,RTJ), ASMEB16.47 (RF,RTJ),MSS SP-44 (NPS 22, Only), ASMEB16.25(BW).
- Tests & Inspection: API 598, API6D
- Also available in NACE MR-0175 and NACE MR-0103 as well as ISO 15848

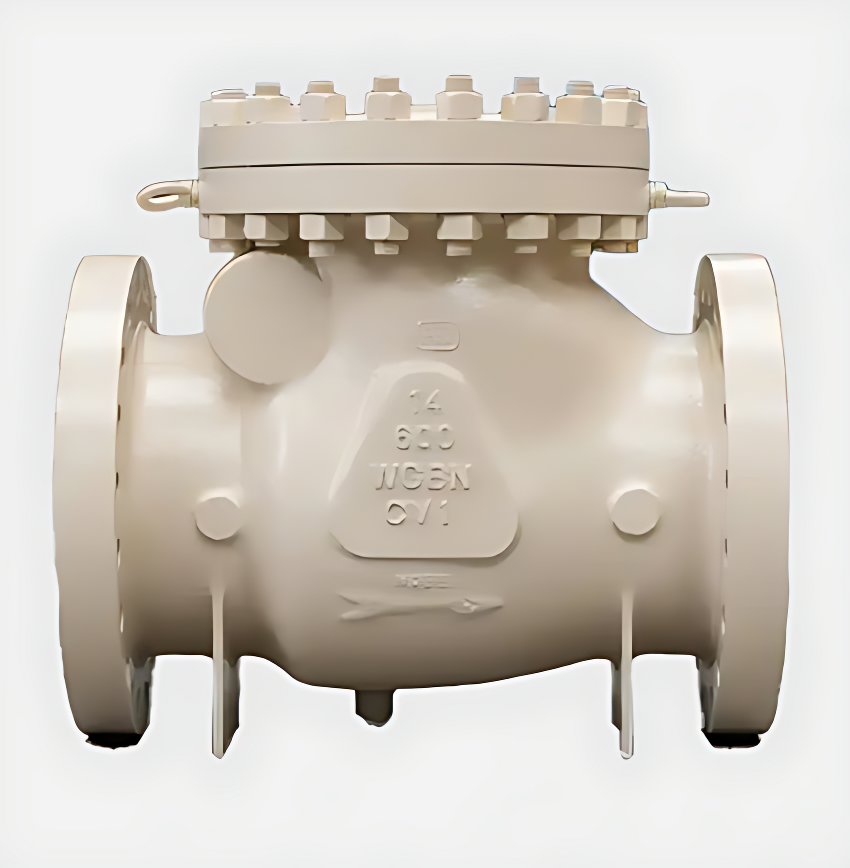

Check valve
Tekne Oilfield provides high-performance valves for oil & Gas, petrochemicals, power and other industrial applications. All of our products meet global standards, are made in accordance with international specifications, and come in various sizes, materials and configurations.
Size Range
The valves we offer are suitable for both small and large-bore piping applications.
Pressure Rating
The valves are designed to operate safely in low-, medium-, and high pressure environments. They comply with ASME Class150 to 2500.
Design Standards
The valves we manufacture are designed strictly according to international standards, such as:
- API 6D
- API 594
- ISO 1868
- ASME B 16.34
Face-to-Face Dimensions
Made to ASME B 16.10 specifications for standard installation and ease of replacement.
End connections
Available in multiple configurations for end connections, including:
- ASME B 16.5
- ASME B 16.25
High-Performance Valves for Demanding Environments
Oil and gas operations are heavily dependent on a reliable pipeline system. Ensuring the safety of these networks requires effective control mechanisms. At TekneOilfield, we provide top quality valves engineered for durability and long lasting performance.
Key Considerations When Selecting Oil & Gas Valves
Pressure and temperature ratings
The valve must be evaluated for the highest pressures and temperatures that it endures. Selecting valves that meet the minimum requirements gives you a safer space and reduces the risk of deformation.
Accurate Control of Flow
Processes that require precise flow control benefit from valves designed for precise throttle control, such as globe or control valves. This accuracy helps ensure the product quality and operational stability.
Effectiveness of the Actuation
Evaluate which of the electrical or hydraulic actuators will best serve the purpose. The most energy efficient actuators can reduce operating expenses while ensuring efficient control.
Reducing Pressure Loss
An incorrect valve design or size can result in an unnecessary drop in pressure, increasing energy consumption and impacting your system efficiency. Selecting valves that have streamlined flow paths ensures the highest performance.
